For serious off-road people interested in driving the hardest possible bargain, you've found your match. Along with its fully automatic 500cc CVT drive motor and 4 wheel independent suspension, this UTV delivers the best in performance and comfort. The Roughrider package includes installed CD player, windshield, sun top, aluminum alloy wheels and a winch. From Performance to options this UTV packs in the most fun in such an affordable package.
Technical Specifications
Engine
Type:
471CC Water cooled, 5-valve, 4-stroke, 1-cylinder
Bore X Stroke:
3.4" x 3.3
Compression Ratio
9:4:1 Ratio
Max. Power
22.8HP/5000-5500rpm
Max. Torque
35.0N.m/5000rpm
Carburetion:
PD36J
Ignition:
CDI
Starting:
Electric
Transmission:
Fully-Auto L-H-N-R-P
Drive Train:
Axle
Chassis
Suspension:
F: Independent double swing arm R: Independent double swing arm

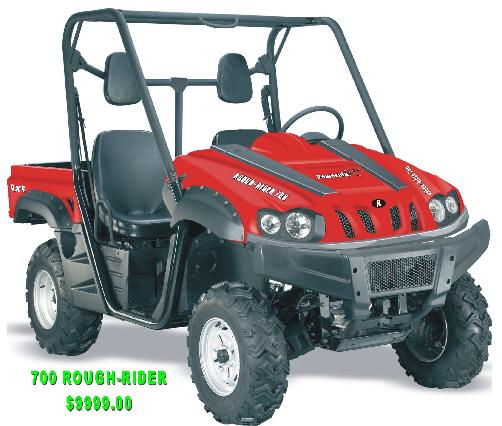

The UTV world will never be the same again. The Powermax 700 Roughrider packs all the features his brother the 500 Roughrider UTV does but with a harder punch. Its efficient CVT transmission combined with its independently developed 700cc 33.5HP motor, selectable 4 wheel drive, 4 wheel independent suspension for your comfort, you can assure top notch performance. The Roughrider 700 UTV is the industry standard with durability and performance that can't be matched. Larger then an ATV but smaller then a compact pick-up truck this UTV is at the top of its class.
Technical Specifications
Engine
Type:
686CC Water cooled, 5-valve, 4-stroke, 1-cylinder
Bore X Stroke:
4.02" x 3.31
Compression Ratio
9:2:1 Ratio
Max. Power
33.5HP/5000-5500rpm
Max. Torque
49.0N.m/5000rpm
Carburetion:
PD42J
Ignition:
CDI
Starting:
Electric
Transmission:
Fully-Auto L-H-N-R-P
Drive Train:
Axle
Chassis
Suspension:
F: Independent double swing arm R: Independent double swing arm
The newly developed 500cc liquid-cooled, fully automatic, 4 stroke engine, long travel four wheel independent suspension and a phenomenal power-to-weight ratio, adds up to one serious and tough ATV. The Bearclaw come standard with aluminum alloy wheels and a winch.
Technical Specifications
Engine
Type:
471CC Water cooled, 5-valve, 4-stroke, 1-cylinder
Bore X Stroke:
3.4" x 3.3
Compression Ratio:
9:4:1 Ratio
Max. Power:
22.8HP/5000-5500rpm
Max. Torque:
35.0N.m/5000rpm
Carburetion:
PD33J-A
Ignition:
CDI
Starting:
Electric/pull start
Transmission:
Fully-Auto L-H-N-R-P
Drive Train:
Axle
Chassis
Suspension:
F: Independent double swing arm R: Independent double swing arm
F: 12V35W/35WX2, 12V5W R: 12v5W/21Wx1 Turning: 12V10W x 4 (F&R)

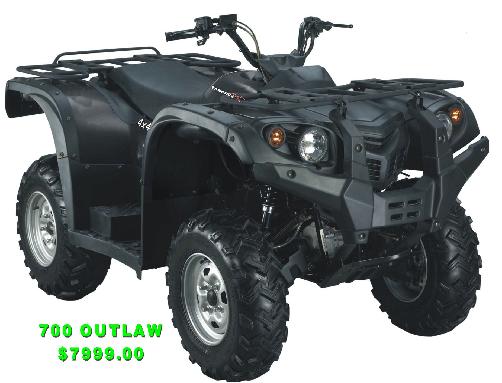

PM 700 OUTLAW
BRUTE TOUGH
The ultimate 4X4 performance, reliability and comfort. Built with adventure enthusiasts and sportsmen in mind the OUTLAW 700 4X4 is wrapped in aggressive bodywork, 4 wheel independent suspension and driven by a powerful independently developed 700cc CVT fully automatic motor. This quad comes standard with aluminum alloy wheels and a powerful winch.
Technical Specifications
Engine
Type:
686CC Water cooled, 5-valve, 4-stroke, 1-cylinder
Bore X Stroke:
4.02" x 3.31
Compression Ratio
9:2:1 Ratio
Max. Power
33.5HP/5000-5500rpm
Max. Torque
49.0N.m/5000rpm
Carburetion:
PD42J
Ignition:
CDI
Starting:
Electric/pull start
Transmission:
Fully-Auto L-H-N-R-P
Drive Train:
Axle
Chassis
Suspension:
F: Independent double swing arm R: Independent double swing arm

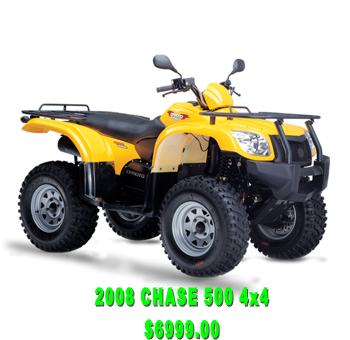

The CHASE500 is equipped with a brand-new CF188 engine independently developed by CFMOTO, featuring large cylinder bore, 4 valves with the advantages of durability, stronger power, lower noise, lower fuel consumption and environmental protection. The engine can fully meet the cooling requirement of long-time operation at low speed with high torque. The Chase 500 can scale a 50~60 degree steep slope easily with high gear and can plow through an impressive depth of water if only the muffler is not submersed. Turning on cobble ground gives another demonstration of the engine torque. Powered by a 500CC engine, the ATV can easily drive along a ladder-type path of 200m long and 40 degrees slope with high gear, even with a passenger! This ATV comes standard with aluminum alloy wheels and a 2500LBS winch.

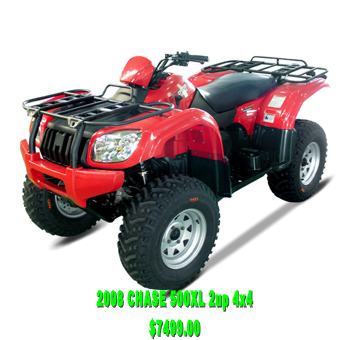

PM 500 CHASE XL
2 PASSENGERS NO PROBLEM
The PM CHASE 500XL is all our standard Chase 500 is and more. Independently designed to suite 2 passengers, standard 8" longer seat, passenger back rest and comfortable foot rests for each rider. This ATV is sure to impress your passengers.
Technical Specifications
Engine
Type:
Liquid-cooled 4-stroke,SOHC
Cylinder arragement:
Forward-inclined single cylinder
Carburetion:
MIKUNI BSR36-89
Displacement:
493 cm3
Bore x stroke:
87.5 × 82mm(3.44×3.23in)
Compression ratio:
10.2:1
Rated Power:
24Kw/7000 rpm
Max. torque
36N.M/5500 rpm
Oil Capaxity:
2.2L
Max. speed
≥30km/h
Power source:
12V, 6.5Ah
Starting system:
Electric and recoil starter
Lubrication system:
Wet sump
Qty in 40GP:
20 units
Chassis
Overall length:
2320mm (91.3in)
Overall width:
1170mm(46.1in)
Overall height:
1230mm(48.4in)
Wheelbase:
1490mm (58.7in)
Minimum ground clearance:
290mm (11.1in)
Minimum turning diameter:
4400mm (173.3in)
Suspension::
F/R:Double wishbone
Transmission:
CVT, P/R/N/H/L
Tire Size:F/R:
F: AT25×8-12 38J R:AT25×10-12 45J
Brake Type:
F:Dual disc brake R: Single disc brake
Front-rack Capacity:
35kg(77.2lb)
Fuel Capacity:
19L
Hitch Towing Capacity:
350kgf(772 lbf)
Rear-rack Capacity:
70kg(154.3 lb)
Dry weight:
337kg(743 lb)
PM 500 BANDIT
TAKE THE POWER TO THE MAX
When you combine features like a fully automatic CVT drive 500cc engine, 4 wheel drive on demand with light weight sport style ATV, your result is a highly enjoyable machine to ride. The Bandit comes standard with aluminum alloy wheels and a winch, this one's a value packed ATV ready for sporty exploring and playing.
Technical Specifications
Engine
Type:
471CC Water cooled, 5-valve, 4-stroke, 1-cylinder
Bore X Stroke:
3.4" x 3.3
Compression Ratio:
9:4:1 Ratio
Max. Power
22.8HP/5000-5500rpm
Max. Torque
35.0N.m/5000rpm
Carburetion:
PD33J-A
Ignition:
CDI
Starting:
Electric/pull start
Transmission:
Fully-Auto L-H-N-R-P
Drive Train:
Axle
Chassis
Suspension:
F:Independent double swing arm R:Independent double swing arm

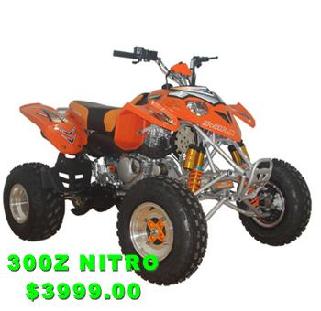

When you're ready to take your sport quading to the next level, jump aboard our highly maneuverable middle weight 300cc Nitro sport quad. This Nitro comes standard with aluminum alloy wheels, front and rear gas shocks and 4 wheel disc brakes. You won't find higher performance or more fun in such an affordable package.
Technical Specifications
Engine
Type:
Single cylinder, Air-cooled, 4-Stroke
Driving Mode:
2WD
Ignition mode:
CDI
Compression proportion:
8.9: 1
Start mode:
Electric
Fuel tank capacity:
10.5L
Transmission mode:
Chain
Power:
20.5 HP / 8,000rpm
Max. torque
15 Lbs-Ft / 6,000rpm
Min. ground clearance:
4.75 "
Max. speed
85km/h
Power source:
12V, 20Ah
Transmission:
4 Speed manual clutch W Rev
Cylinder size:
78 x 61.2mm
Engine oil:
1.3 L
Lubrication:
Pressure splash
Displacement:
292 CC
Parking trig:
Mechanical lock
Gas cylinder number:
1
Chassis
Front wheels:
21x 7-10
Rear wheels:
20 x 10-9
Break type (F/R):
Disc / Disc
Front hanging:
Double arm-swing
Rear hanging:
Integral
Dimensions
Product dimensions :
73" x 47" x 45"
Carton dimensions:
70" x 44" x 35"
Wheelbase:
48"
Height of seats:
34"
Dry weight:
419 Lbs
Load capacity:
340 Lbs
Climbing degree:
20°
Min. turning radius:
118"
Max. number of riders:
1
Colours Available
Blue, Red, Orange

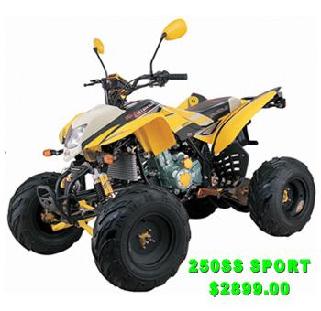

PM 250SS Sport
ALL NEW AND THE LOOKS TOO
Here is an awesome recreational sport quad with all the looks of a high-performance machine. This limited edition 250ss comes in a unique black, yellow and white combo. Big thrills in a small package doesn't come better then this.
Technical Specifications
Engine
Type:
Single cylinder, Liquid cooled, 4-Stroke
Driving Mode:
4WD
Ignition mode:
CDI
Compression proportion:
9.2: 1
Start mode:
Electric
Fuel tank capacity:
4L
Transmission mode:
Chain
Power:
18 HP / 7,500rpm
Max. torque
12 Lbs-Ft / 6,000rpm
Min. ground clearance:
4.2"
Max. speed
80 Km/h
Power source:
12V, 9Ah
Transmission:
4 Speed, Manual clutch, W Rev
Cylinder size:
63.5 x 62.2mm
Engine oil:
0.9L
Lubrication:
Press splash
Displacement:
197ml
Parking trig:
Mechanical lock
Gas cylinder number:
1
Chassis
Front wheels:
21x 7-10
Rear wheels:
20 x 10-10
Break type (F/R):
Disc / Disc
Front hanging:
Double arm-swing
Rear hanging:
Integral
Dimensions
Product dimensions :
66" x 44" x 44"
Carton dimensions:
58" x 33" x 34"
Wheelbase:
46"
Height of seats:
33"
Dry weight:
368 Lbs
Load capacity:
240 Lbs
Climbing degree:
20°
Min. turning radius:
107"
Max. number of riders:
1
Colours Available
Yellow, Black, Blue, Red

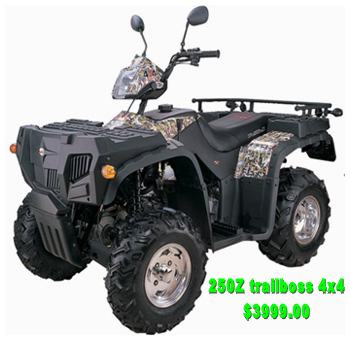

PM 250Z TRAILBOSS
WORK HARD PLAY HARD
The PM 250Z Trail Boss will haul you and your gear around, for hunting, trail riding or just straight up fun. This full size utility ATV can go to work for you. With its high torque 4 speed semi auto transmission, solid rear axel and 2X4 4X4 select this ATV is ready to get the job done.
Technical Specifications
Engine
Type:
Single Cylinder, Liquid-cooled, 4-Stroke
Driving Mode:
4WD
Ignition mode:
CDI
Compression proportion:
8.7: 1
Start mode:
Electric / Manual
Fuel tank capacity:
12 L
Power:
15.5HP / 6,500rpm
Max. torque
12.5 Lbs-Ft/ 5,500rpm
Min. ground clearance:
6.5"
Max. speed
75 km/h
Power source:
12V, 14Ah
Transmission:
4 Speed with reverse, Semi automatic 2X4 4X4
Cylinder size:
71 x 58mm
Engine oil:
1.6L
gear oil:
Front tank :0.4L Rear tank :0.25L
Lubrication:
press splash
Displacement:
229.6 CC
Parking trig:
Mechanical lock
Gas cylinder number:
1
Chassis
Front wheels:
22x 8-10
Rear wheels:
22 x 11-10
Break type (F/R):
Disc / Disc
Front hanging:
Single arm-swing
Rear hanging:
Integral
Dimensions
Product dimensions :
75" x 45" x 48"
Carton dimensions:
85" x 46" x 35"
Wheelbase:
47"
Height of seats:
35"
Dry weight:
595 Lbs
Load capacity:
375 Lbs
Climbing degree:
20°
Min. turning radius:
114"
Max. number of riders:
1
Colours Available
Red, Blue, Green, Camoflage

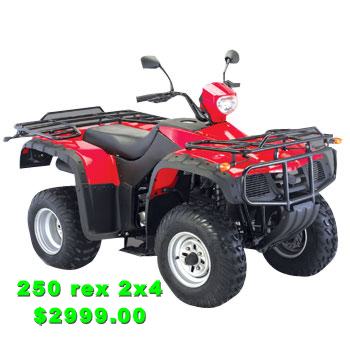

PM 250 REX SEMI-AUTO 2X4
Looking for that 250-class ATV that really knows it way around the trails? Then check out the 250 REX. Packing a resilient electric starting four-stroke engine, four-speed semi-auto transmission and steel cargo racks, Powemax 250 Rex is synonymous with four wheel value. Whether it's tasked with play or work, you can rest assured the tough and economical 250 Rex will excel at the job. .
Technical Specifications
Engine
Type:
single cylinder, air-cooling, 4-stroke
Ignition mode:
CDI
Compression proportion:
8.8:1
Start mode:
electric
Fuel tank capacity:
2.75L
Transmission mode:
chain
Power:
2.2kW/7,500rpm
Max. torque
3.0Nm/6,000rpm
Min. ground clearance:
95mm
Max. speed
≥30km/h
Power source:
12V, 6.5Ah
Transmission:
4 gears, automatic clutch
Power source:
39 x 41.4mm
Engine oil:
0.8L
Lubrication:
press splash
Displacement:
49.456mL
Chassis
Front wheels:
14.5x7.0-6
Rear wheels:
14.5x7.0-6
Break type (F/R):
rear disc
Front hanging:
integral
Rear hanging:
integral
Dimensions
Product dimensions :
1,080 x 670 x 770mm
Carton dimensions:
1,120 x 670 x 670mm
Wheelbase:
700mm
Height of seats:
540mm
Dry weight:
68kg
Load capacity:
50kg
Climbing degree:
≥15°
Min. turning radius:
1,600mm
Max. number of riders:
1
Color:
red/yellow/blue/green/camouflage
PM 150 SS
Just Fuel up and go! On the track or trails the Powermax Max 150 SS is a great machine.
The Max 150's powerful, fully automatic with reverse makes this ATV one of our most popular models.
Recommended for riders ages 14 and up.
Technical Specifications
Engine
Type:
Single-cylinder, Air-cooled, 4-stroke
Ignition mode:
CDI
Compression proportion:
10:01
Start mode:
Electric/ Kick
Fuel tank capacity:
6.6L
Transmission mode:
Chain
Power:
6.2kW / 7,200rpm
Max. torque
9.8N.m /4,800rpm
Min. ground clearance:
120mm
Max. speed
≥65km/h
Power source:
12V, 9Ah
Transmission:
Full Auto, CVT W Reverse
Cylinder size:
57.4 x 57.8mm
Engine oil:
0.93L
gear oil:
0.11L
Lubrication:
press splash
Displacement:
149 CC
Parking trig:
Mechanical lock
Gas cylinder number:
1
Chassis
Front wheels:
19×7-8
Rear wheels:
18×9.50-8
Break type (F/R):
Disc / Disc
Front hanging:
Double arm-swing
Rear hanging:
Integral
Dimensions
Product dimensions :
1,710 x1,000 x 1,100mm
Carton dimensions:
1,490 x 840 x 830mm
Wheelbase:
1,080mm
Height of seats:
760mm
Dry weight:
153kg
Load capacity:
105kg
Climbing degree:
≥20°
Min. turning radius:
2400mm
Max. number of riders:
1
Colours Available
Red, Black, Blue, Yellow, Green
PM 50 MINI
The PowerMax MINI 50 ATV is the perfect starter ATV to gain confidence in young riders. Equipped with a throttle governor and fully automatic transmission make this ATV the safest around.
Every child will remember its first motor sport memory; don't let your kids miss theirs. The PowerMax MINI 50 combines looks performance and quality for hundreds less!
Recommended for ages 5 and up.
Technical Specifications
Engine
Type:
single cylinder, air-cooling, 4-stroke
Ignition mode:
CDI
Compression proportion:
8.8:1
Start mode:
electric
Fuel tank capacity:
2.75L
Transmission mode:
chain
Power:
2.2kW/7,500rpm
Max. torque
3.0Nm/6,000rpm
Min. ground clearance:
95mm
Max. speed
≥30km/h
Power source:
12V, 6.5Ah
Transmission:
4 gears, automatic clutch
Power source:
39 x 41.4mm
Engine oil:
0.8L
Lubrication:
press splash
Displacement:
49.456mL
Chassis
Front wheels:
14.5x7.0-6
Rear wheels:
14.5x7.0-6
Break type (F/R):
rear disc
Front hanging:
integral
Rear hanging:
integral
Dimensions
Product dimensions :
1,080 x 670 x 770mm
Carton dimensions:
1,120 x 670 x 670mm
Wheelbase:
700mm
Height of seats:
540mm
Dry weight:
68kg
Load capacity:
50kg
Climbing degree:
≥15°
Min. turning radius:
1,600mm
Max. number of riders:
1
Other
Conveyance:
Qty/20’ GP: 51 units Qty/40’ GP: 105 units Qty/40’ HQ: 138 units
color:
red/yellow/blue/green/camouflage

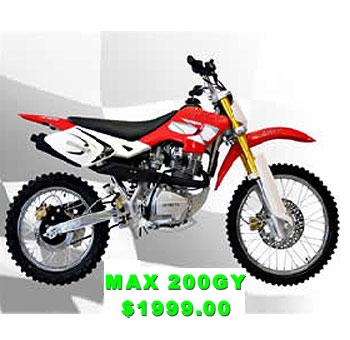

Max 200GY
The Powermax 200GY is designed for off-road adventure. This bike features a smooth running 197cc 4 stroke engine. Power is transmitted through a slick 5 speed manual transmission. Whether your riding the trails, having fun with the kids, or simply enjoying the outdoors with friends, your Powermax 200GY will give you years of trouble free enjoyment! Let the fun begin...

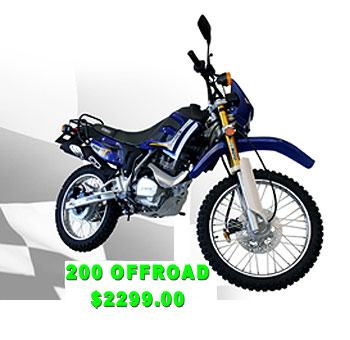

MAX 200 OFFROAD
Predictable power and reliability makes the Powermax 200 Enduro a great bike for beginner and intermediate riders. Contact your local dealer for a test drive today!
